INSPIRE 2 - Power Beyond Imagination

The Inspire 1 was a revelation. The first filmmaking drone in the world to integrate an HD video transmission system, 360° rotating gimbal and a 4K camera, as well as the simplicity of app control. The launches of the Zenmuse X5 and X5R cameras further cemented the Inspire as a critical tool for filmmakers around the globe.

The Inspire 2 takes everything that was good about the Inspire 1 and improves it. The image processing system CineCore2.0 has been upgraded to CineCore2.1, recording video at up to 6K in CinemaDNG/RAW and 5.2K in Apple ProRes when used with Zenmuse X7 camera. It goes from 0 to 50 mph (80 kph) in just 5 seconds and hits a maximum speed of 58 mph (94 kph) and has a max descent speed of 9m/s for unheard of speed and agility in an aircraft this size. A dual battery system prolongs the flight time to a maximum of 27 minutes (with an X4S), while self-heating technology allows it to fly even in low temperatures.FlightAutonomy has been revised and developed specifically for the Inspire 2, providing two directions of obstacle avoidance and sensor redundancy.Increased intelligence adds multiple intelligent flight modes, including Spotlight Pro, giving even single pilots the ability to create complex, dramatic shots.An upgraded video transmission system is now capable of dual signal frequency and dual channel, streaming video from an onboard FPVcamera and the main camera simultaneously, for better pilot and camera operator collaboration.

AIRCRAFT

Structure: Magnesium aluminium composit shell and transforming design, carbon fibre arms

Configuration: Vision sensing, 2-axis FPV camera, range of supported cameras

Propulsion: 58 mph (94 kph) max speed, 2kg of thrust per rotor, 15-in props, 23-min (hovering at sea level with no wind) flight time with X7, 27-min (hovering at sea level with no wind) flight time with X4S

Battery: Dual battery, self-hearing, battery redundancy, 98Wh

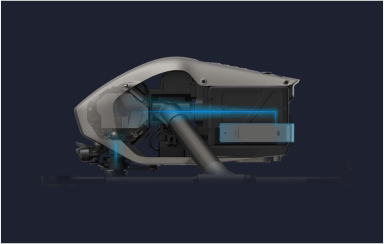

IMAGE PROCESSING

Image Processing and Storage: 6K RAW @ 4.44 Gbps* video recording, all-new CineCore 2.1, Integrated DJI CINESSD.

File System: FAT32/exFAT universal file system

<h5><strong>REMOTE CONTROLLER</strong></h5>
<p>Lightbridge Technology: Signal frequency switching between 2.4 GHz. Lightbridge technology.<br />Controllable Range: 4.3 mi (7km)*<br />Master-slave mode: Multiple slave controllers supported.<br />Ports: Extension port, HDMI port, USB port.<br />Unobstructed, free of interference, when FCC compliant.</p> 6K CinemaDNG* and 5.2K Apple ProRes video support, H.265 and H.264 video codec support, 4K video at 100Mbps. Recorded video can be stored simultaneously on the DJI CINESSD and a Micro- SD card.

* Zenmuse X7 camera required

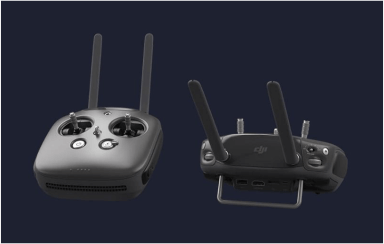

REMOTE CONTROLLER

Lightbridge Technology: Signal frequency switching between 2.4 GHz. Lightbridge technology.

Controllable Range: 4.3 mi (7km)*

Master-slave mode: Multiple slave controllers supported.

Ports: Extension port, HDMI port, USB port.

* Unobstructed, free of interference, when FCC compliant.

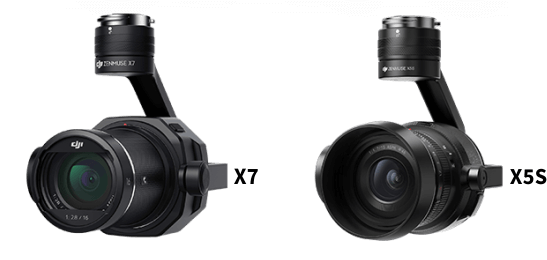

PROFESSIONAL IMAGE QUALITY

Integrated into the Inspire 2 is the brand new CineCore 2.1 image processing system, which is capable of recording video in 6K @4.44Gbps CinemaDNG*1, 5.2K @2.08Gbps Apple ProRes*2, and H.265/H.264 @100Mbps. CineCore 2.1 supports burst shots, capturing 10 JPEG + DNG bursts and continuous DNG bursts*3 at 20fps (24MP per shot) when the Zenmuse X7 is mounted. (Currently compatible with the X7, X5S and X4S*4. Please refer to Specs for the supported video formats of each camera).

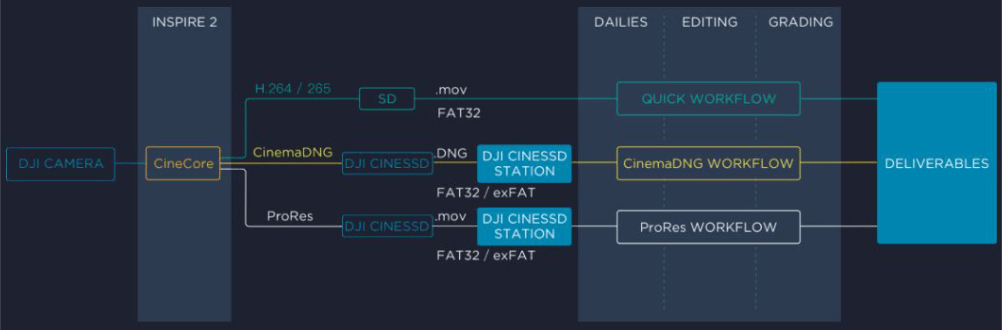

EFFICIENT WORKFLOW

The Inspire 2 creative workflow has been completely optimized and is now capable of recording video in CinemaDNG and Apple ProRes, and other common formats for post-production in filmmaking. Also supported are FAT32/exFAT* file systems, which allow fast copying of files direct from the CINESSD without additional software.

* Coming soon.

SENSE AND AVOID

Forward and downward vision systems enable the Inspire 2 to detect obstacles up to 30 meters ahead, allowing for protected flight at up to 34mph (54kph)at a controllable attitude angle of 25°. Upward facing infrared sensors scan obstacles 16ft (5m) above, adding protection when flying in enclosed spaces.Obstacle sensing systems are active during normal flight, RTH and all Intelligent Flight Modes.These sensors are core components of the DJI FlightAutonomysystem, which brings the below intelligent features to the Inspire 2:

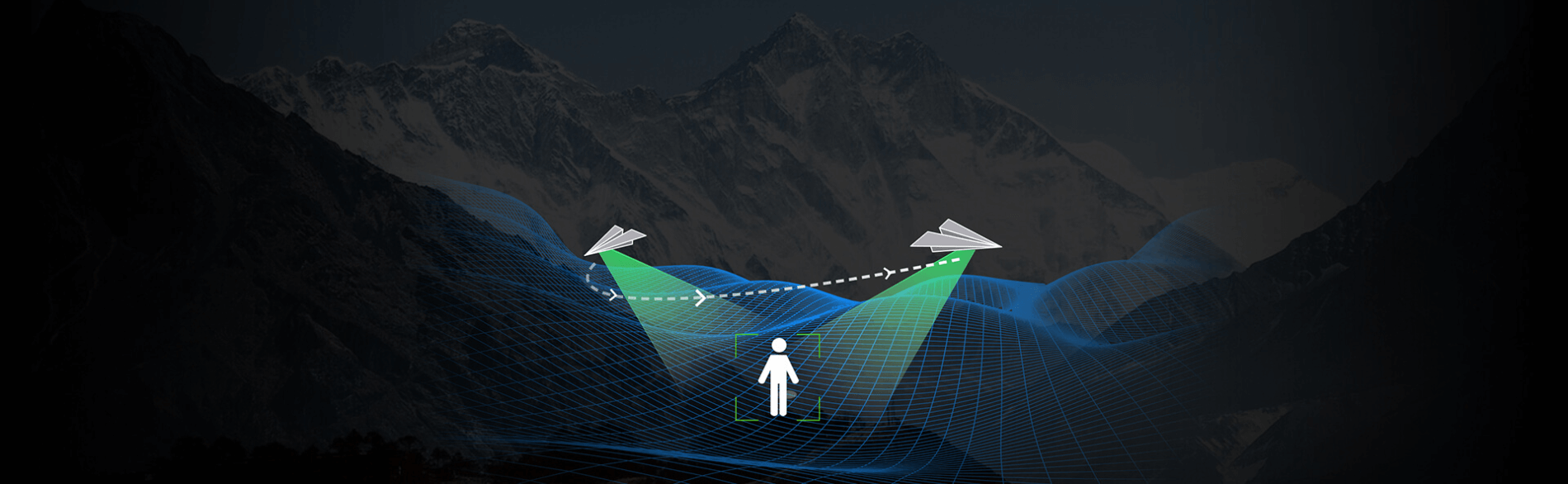

SPOTLIGHT PRO

Spotlight Pro is a powerful tracking mode that allows even single pilots to capture complex, dramatic images. It uses advanced visual tracking algorithms to lock onto a subject during flight, regardless of the direction that the Inspire 2 flies, creating shots that would once have required a dedicated camera operator. If the gimbal comes close to reaching its rotation limits, the Inspire 2 itself will rotate in the same direction without affecting flight control or the shot being captured to free up gimbal movement.

It has two shooting modes, Quick Mode and Composition Mode. In Quick Mode, select an object to begin tracking. In Composition Mode, select the subject and the tracking position.When the subject enters the preset tracking position, press the shortcut to begin tracking. The gimbal can be moved during shooting for composition adjustments.Spotlight Pro is available in Intelligent Flight Modes TapFly, Waypoint, and Point of Interest.

INTELLIGENT FLIGHT MODES

In addition to Spotlight Pro, a range of other intelligent flight and shooting modes are available. Obstacle avoidance is optimized when using Point of Interest*and Waypointmodes, making complex shots simple and repeatable. Also available are QuickSpin, TapFly and ActiveTrack, to simplify challenging shots.

*Coming soon.

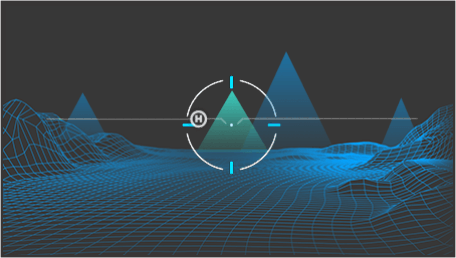

TapFly

The 2-axis onboard FPV camera separates the flight view from the main camera view, effectively giving the Inspire 2 a dedicated TapFly camera. Tap a point onscreen in the FPV view to set a flight route and the Inspire 2 will automatically fly along that route, leaving the pilot to focus on gimbal movement.

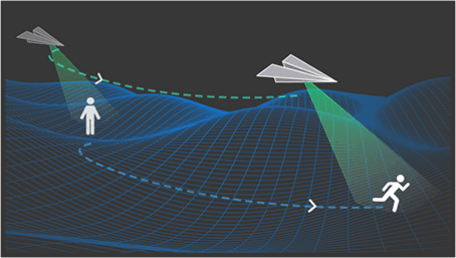

ActiveTrack

The ActiveTrack Mode allows the Inspire 2 to recognize a range of objects, from people to bikes to cars to boats. Tracking profiles that can be adjusted based on the subject being tracked means greater tracking precision.

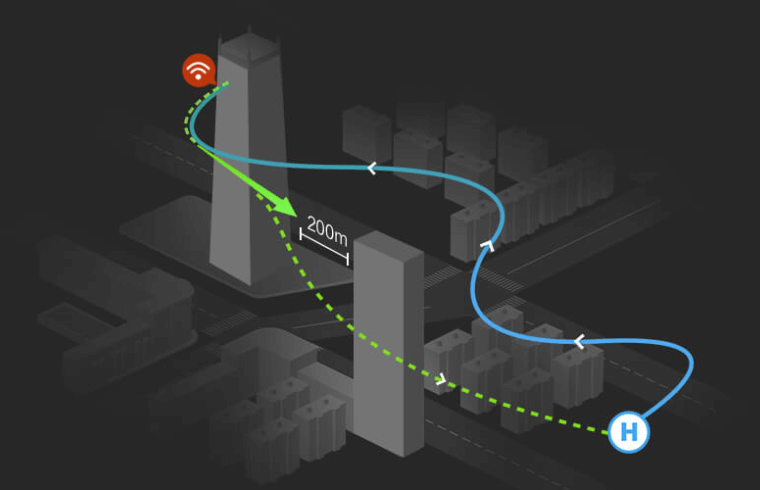

SMART RETURN TO HOME

Forward and downward vision systems allow the Inspire 2 to create a real-time map of its flight route as it flies. If the video transmission system signal is lost and Smart Return Home is enabled, it is able to fly home along its original route, and change to a straight line when it regains a signal. As it returns, it will use the primary camera to identify obstacles as far as 200m in front, allowing it to plan a safe route home. It is also able to reconnect more quickly after losing connection.

VIDEO TRANSMISSION SYSTEM

The latest update to DJI Lightbridge technology has an effective transmission distance of up to 4.3mi (7km)* and is capable of delivering both 1080p/720pvideo as well as the FPV view to pilot and camera operator. Users can also switch between 2.4GHz and 5.8GHz** control frequencies to cut through noise for greater signal stability.

MASTER AND SLAVE CONTROLLERS

A new wireless HD image transmission technology sends video information from the master controller to the slave controller and the two controllers can be up to100m apart without loss of image quality.

BROADCAST MODE

Broadcasters can broadcast direct from the Inspire 2 using its dedicated 1080i50and 720p60 transmission signal. Aerial live-streaming direct to TV is as simple asconnecting the Inspire 2 remote controller to the satellite truck.

*Unobstructed, free of interference, FCC compliant.
**5.8GHz transmission is not available in some regions due to local regulations.

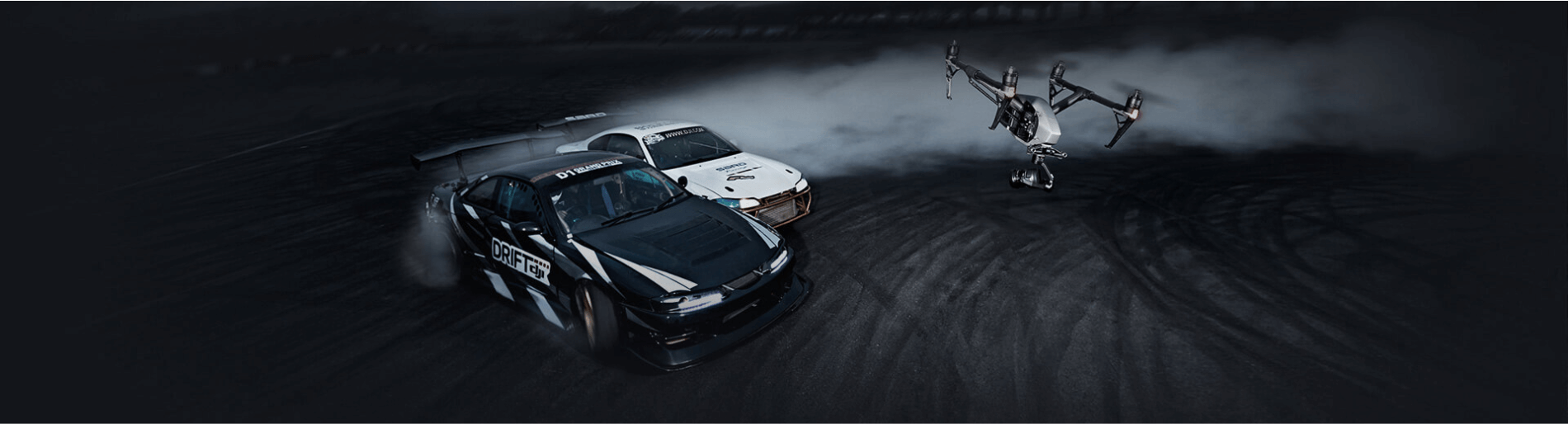

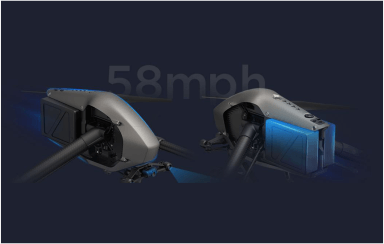

POWERFUL FLIGHT PERFORMANCE

A new propulsion system optimized for power creates a new level of flight performance. The Inspire 2 flies at up to 58mph (94kph) descends at 9m/s andascends at 6m/s. It can accelerate from 0 to 50mph (80kph) in just 5 seconds and flies at a max attitude angle of 40°. The two controller sticks are tuned for moresensitivity, making delicate maneuvers easier.

More power also allows the Inspire 2 to fly in more extreme conditions, including over 2500-5000m above sea level (using optional dedicated propellers),and in temperatures as low as -4°F (-20°C) using self-heating Intelligent Flight Batteries.

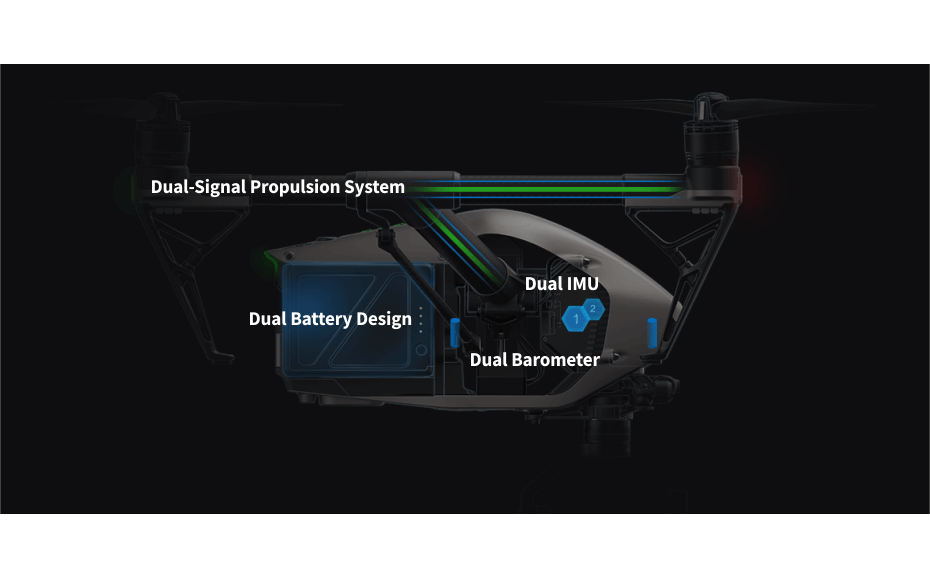

INCREASED RELIABILITY

Reliability has been further enhanced through dual redundancy of key modules such as the IMU and barometer. The intelligent flight control system monitors the redundancy system, giving it accurate flight data.

The new obstacle sensing system helps the Inspire 2 sense and avoid obstacles, minimizing the risk of collision.

Dual batteries mean that if a problem occurs on one battery the other is able to continue flight long enough for a safe landing. At the same time, the Inspire 2 propulsion system is driven a PWM signal with serial port signal redundancy so that if PWM signals are lost, the transmission will continue through the serial port.

This propulsion system has been tested for thousands of hours to ensure reliability, when combined with key sensors and a dual-battery design, overall flight reliability is significantly enhanced.

OPTIONAL ACCESSORIES TO ENHANCE PERFORMANCE

A series of powerful DJI accessories help improve work efficiency and give filmmakers more creative opportunities.

DJI CINESSD Station

The DJI CINESSD Station is used to connect the DJI CINESSD into a computer for fast, efficient file transfer.

DJI CINESSD

DJI CINESSD uses an NVMe logical device interface specification, features four PCI Express*1 ports and supports FAT32/exFAT*2 file formats. It comes in 120GB,240GB and 480GB. When using a 240GB or 480GB CINESSD, the Inspire 2 can record videos at write speeds of up to 4.2Gbps, providing enough data to meet demanding filmmaking needs.

*1 PCI Express 3.0*2 Coming soon

Aspire 2 Activation Key

Inspire 2 Activation Key for RAW & Apple ProRes allow CineCore 2.1 to record in CinemaDNG and Apple ProRes*. These are available for purchase separately and allow the Zenmuse X7 and Zenmuse X5S camera to produce the exact file type needed for individual post-production requirements.

*Please note that maximum video resolution is subject to DJI CINESSD capacity. Refer to the User Manual for details.

CrystalSky

A 5.5inch, 1000 cd/m² display, a 7.85inch 1000 cd/m² display and a 7.85inch 2000 cd/m² display, are all designed by DJI to offer the brightness and clarity needed when shooting outdoors. A powerful video decoder integrated in these displays create smooth video and integrated image enhancement increases performance in bright environments. All these displays are operational from -4°F (-20°C) to 104°F (40°C) and are made to work with a replaceable external battery.

DJI Focus

DJI Focus adds remote focus control to the Zenmuse X7, X5S and X4S.

DJI Battery Station

An 800W Battery Station charges up to eight Inspire 2 batteries. With additional space for storing four Intelligent Flight Batteries and a standard battery charger. The DJI Battery Station is also equipped with two USB charging ports.

4G-LTE Network Connection**

The Inspire 2 supports control over 4G. This high bandwidth allows the Inspire 2 to transmit high quality videos to a network server or can be used for ultra-long distance control. It also cuts video transmission latency to 500ms.

** Coming soon

Ground Filming

An all-new handheld camera mount is compatible with the Zenmuse X7, X5S and X4S, bringing these cameras down to the ground for more flexible filmmaking.

Remote Controller GPS Module

A GPS Module for the Remote Controller improves the accuracy of the remote controller’s positioning. Used with the Inspire 2’s Dynamic Home point function which constantly updates the latest location of the remote controller as its Home point, it allows accurate Return to Home when moving around an environment.



INSPIRE 2 - Specs

AIRCRAFT
Model T650
Weight 7.58 lbs (3440 g, including propellers and two batteries, without gimbal and camera)
GPS Hovering Accuracy Vertical: ±1.64 feet (0.5 m) or ±0.33 feet (0.1 m, Downward Vision System enabled)
Horizontal: ±4.92 feet (1.5 m) or ±0.98 feet (0.3 m, Downward Vision System enabled)
Max Angular Velocity Pitch: 300°/s
Yaw: 150°/s
Max Tilt Angle P-mode: 35° (Forward Vision System enabled: 25°)
A-mode: 35°
S-mode: 40°
Max Ascent Speed P-mode/A-mode: 16.4 ft/s (5 m/s)
S-mode: 19.7 ft/s (6 m/s)
Max Descent Speed Vertical: 13.1 ft/s (4 m/s)
Tilt: 13.1-29.5 ft/s (4-9 m/s)
Max Takeoff Sea Level 1.55 mi (2500 m)
3.1 mi (5000 m with specially-designed propeller)
Max Wind Speed Resistance 10 m/s
Max Flight Time Approx. 27min (with Zenmuse X4S)
Approx. 23min (with Zenmuse X7)
(Hovering at sea level with no wind.)
Motor Model DJI 3512
Propeller Model DJI 1550T
Indoor Hovering Enabled by default
Operating Temperature -4° to 104° F (-20° to 40° C)
Diagonal Distance(propeller excluded) 23.8 inch (605 mm, Landing Mode)
Max Speed 58 mph or 94 kph(Sport mode)
REMOTE CONTROLLER
Model GL6D10A
Operating Frequency 2.400-2.483 GHz
5.725-5.850 GHz
Max Transmitting Distance(unobstructed, free of interference) 2.4 GHz:
FCC: 4.3 miles (7 km);
CE: 2.2 miles (3.5 km);
SRRC: 2.5 miles (4 km);
MIC: 2.5 miles (4 km);
5.8 GHz:
FCC: 4.3 miles (7 km);
CE: 1.2 miles (2 km);
SRRC: 3.1 miles (5 km);
MIC: - ;
EIRP 2.4 GHz:
FCC: 26 dBm;
CE: 17 dBm;
SRRC: 20 dBm;
MIC: 17dBm;
5.8 GHz:
FCC: 28 dBm;
CE:14 dBm;
SRRC: 20 dBm;
MIC: - ;
Video Output Ports USB, HDMI
Power Supply Built-in battery
Charging DJI charger
Dual User Capability Host-and-Slave connection
Mobile Device Holder Tablet or Smart Phone
Max Mobile Device Width 170 mm
Output Power 9 W (Without supplying power to smart device)
Operating Temperature -4° to 104° F (-20° to 40° C)
Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
Charging Temperature 32° to 104° F (0° to 40° C)
Battery 6000mAh 2S LiPo
USB Supply Power iOS: 1 A @ 5.2 V (Max); Android: 1.5 A @ 5.2 V (Max)
BATTERY (STANDARD)
Name Intelligent Flight Battery
Model TB50
Capacity 4280 mAh
Voltage 22.8 V
Battery Type LiPo 6S
Energy 97.58 Wh
Net Weight 515 g
Charging Temperature 41° to 104° F (5° to 40° C)
Operating Temperature -4° to 104° F (-20° to 40° C)
Max Charging Power 180 W
Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
DOWNWARD VISION SYSTEM
Velocity Range <32.8 ft/s (10 m/s) at height of 6.56 feet (2 m)
Altitude Range <32.8 feet (10 m)
Operating Range <32.8 feet (10 m)
Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux)
Ultrasonic Sensor Operating Range 0.33-16.4 feet (10-500 cm)
Ultrasonic Sensor Operating Environment Non-absorbing material, rigid surface (thick indoor carpeting will reduce performance)
UPWARD INFRARED SENSOR
Obstacle Sensing Range 0-16.4 feet (0-5 m)
FOV ±5°
Operating Environment Large-size non-reflective obstacles
GIMBAL
Model ZENMUSE X4S(optional)
ZENMUSE X5S(optional)
Angular Vibration Range ±0.01°
Controllable Range Pitch: -130° to+40°
Roll: ±20°
Pan: ±320°
Max Controllable Speed Pitch: 180°/s
Roll: 180°/s
Pan: 270°/s
Interface Type Detachable
Mechanical Range Pitch: -140° to+50°
Roll: -50° to+90°
Pan: ±330°
CHARGER
Model IN2C180
Voltage 26.1 V
Rated Power 180 W
CHARGING HUB
Model IN2CH
Input Voltage 26.1 V
Input Current 6.9 A
FORWARD VISION SYSTEM
Obstacle Sensing Range 2.3-98.4 feet (0.7-30 m)
FOV Horizontal: 60°; Vertical: 54°
Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux)
APP
Name DJI GO 4
Mobile Device System Requirements iOS 9.0 or later,Android 4.4.0 or later
